Facade system

Unlimited creative freedom and maximum entrance of light

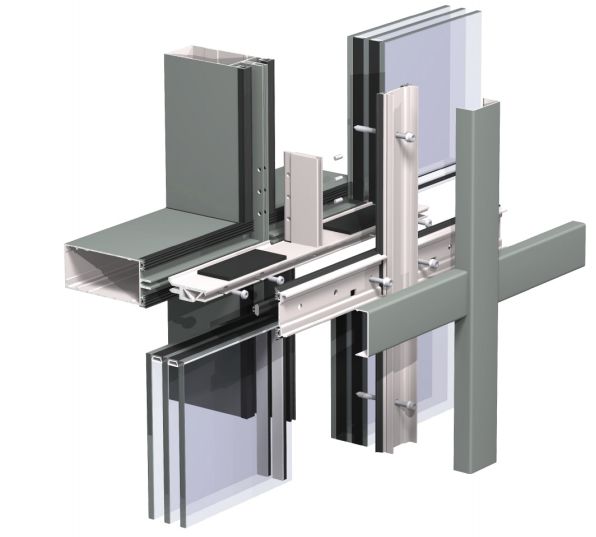

Concept Wall 50 is a facade and roof system that offers unlimited design freedom and allows maximum transparency. Innovative solutions contribute towards the tendency of big, heavy and high insulated glass panes. CW 50 supports glass panes upto 700 Kg in various glass configurations. Even more glass weight can be offered in bespoke solutions.

The system is available in several design and glazing variants, but also includes different technical variants to comply with specified levels of fire-resisitance and thermal insulation down to Uf = 0.56W/ m²K.

The design variants offer solutions for both exterior and the interior of the building. The glazing variants range from using standard pressure plates, to structurally glazed and structurally clamped solutions.

Performance:
Thermal insulation- Uf-value down to 0.56W/m²K depending on the profile combination

Acoustic performance- Rw (C;Ctr) = 33 (-1;-3) dB / 60 (-2;-6) dB, depending on the glazing type or panel type

Air tightness- Up to 1950 Pa (class AE 1950)

Wind load resistance – Up to 2400 Pa

Water tightness – Up to 1950 Pa (class RE 1950)

Burglar resistance – Up to WK 3 (NEN 5096 / ENV 1627)
